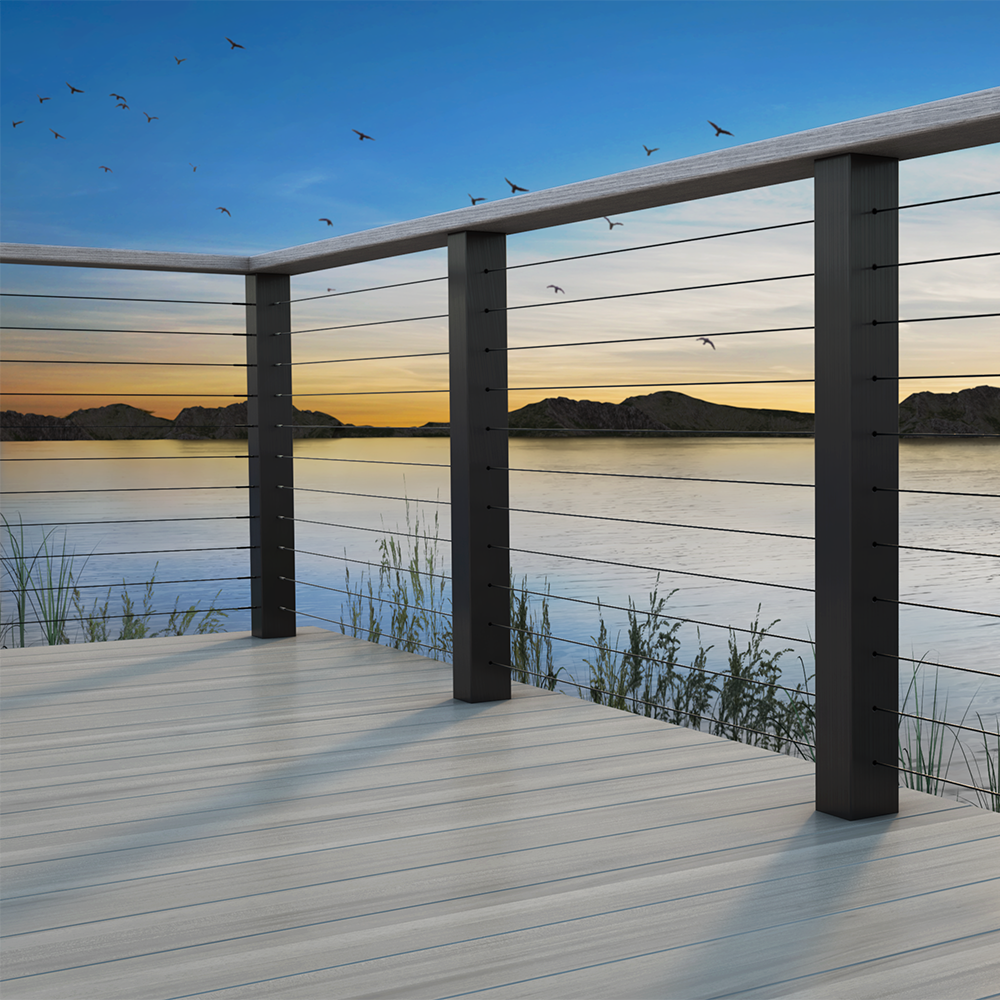

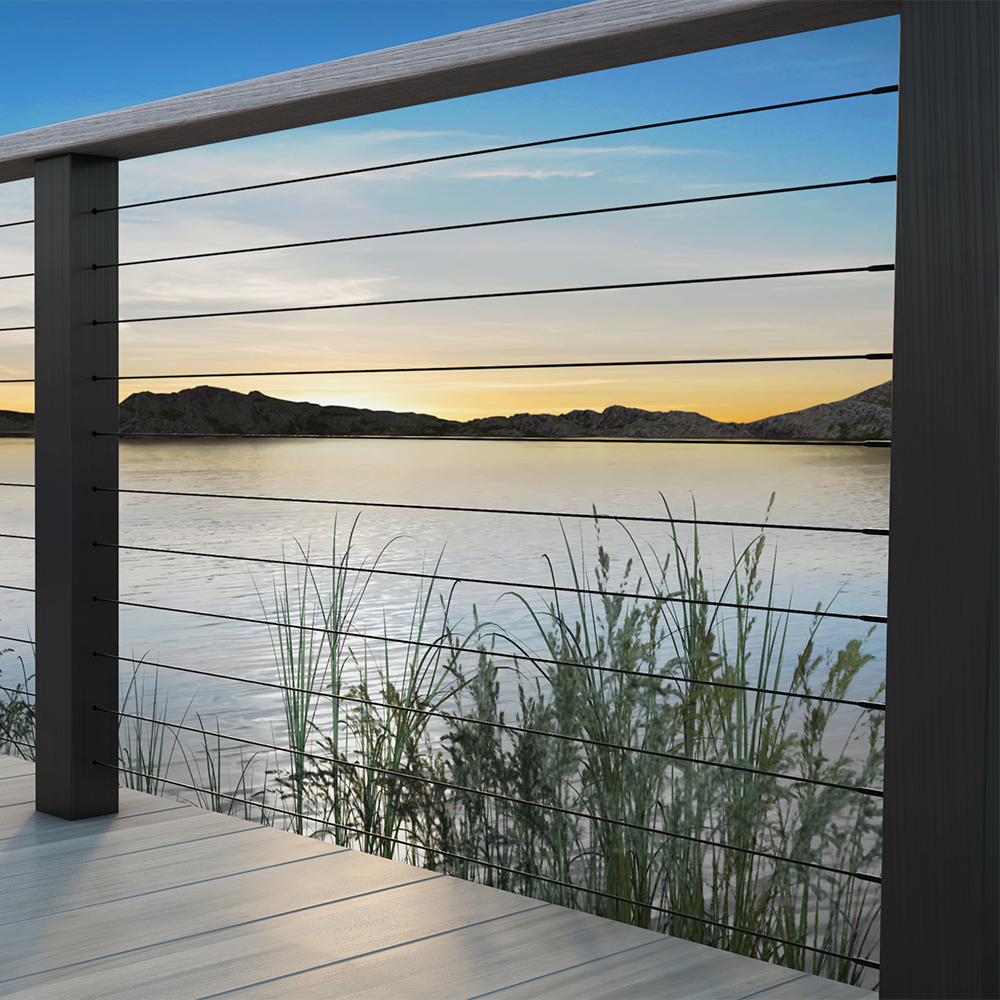

Wire Balustrade - Timber Insert - Black

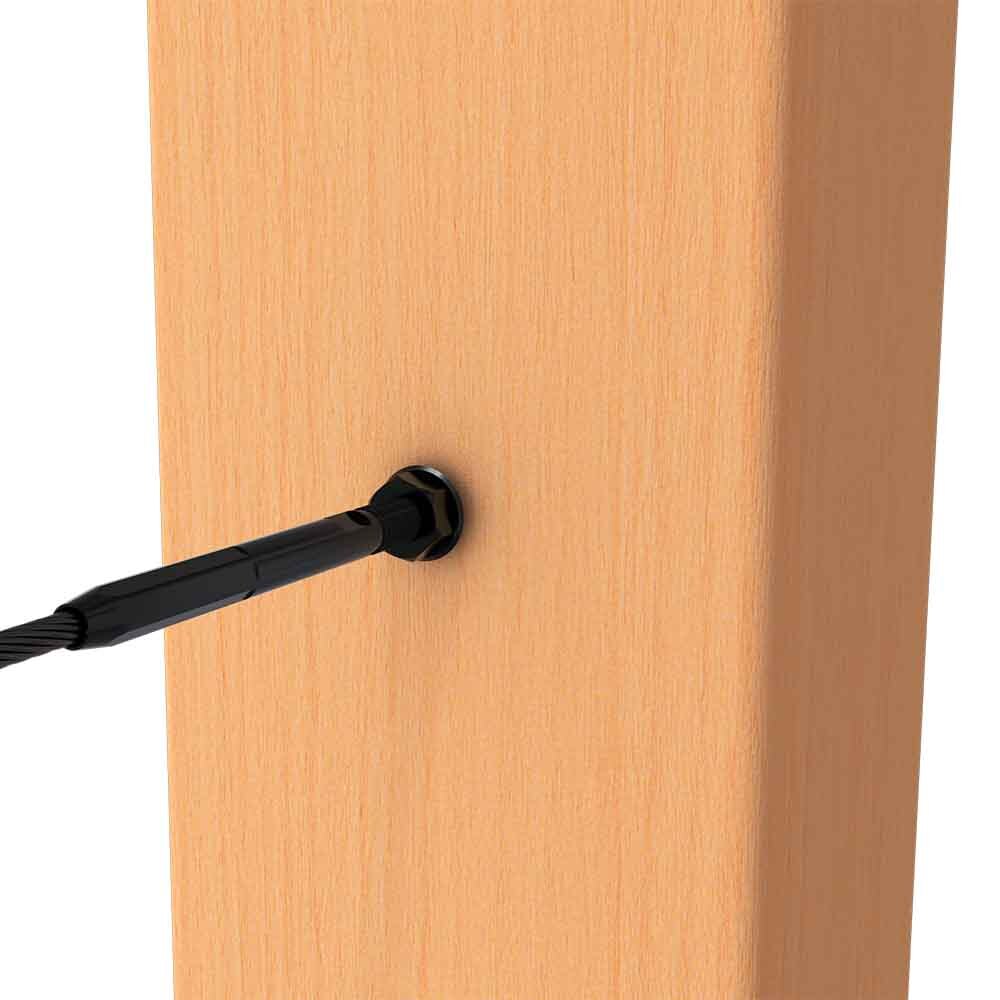

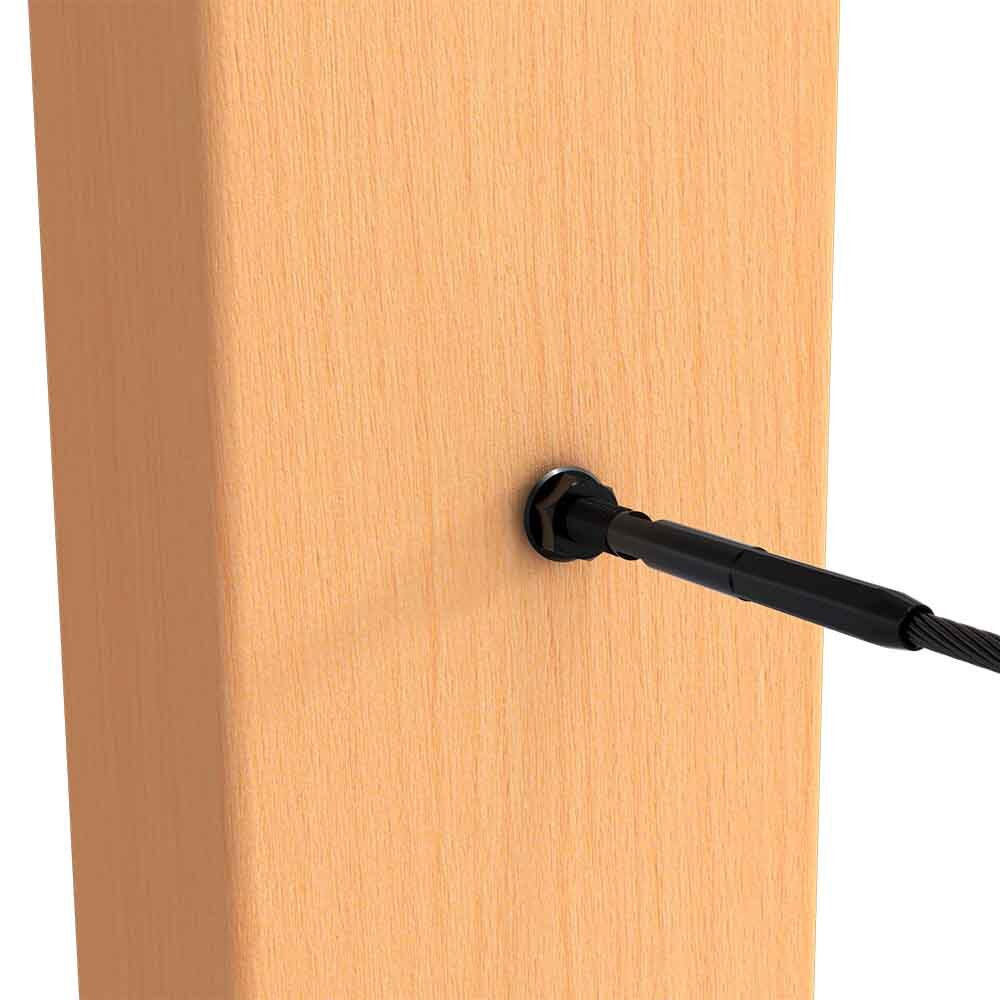

Is one of our most streamline systems. It is suitable for use with timber posts and is great for both straight sections and stair sections. Tension is created on the wire by threading the LHT/ RHT swage studs into the LHT/ RHT timber inserts. Tightening the nuts against the head of the timber inserts locks the system in place.


Exclusively available through AWR Solutions our BlackEtch process offers a unique, stylish, and extremely durable finish to your wire balustrade system. Etched into the surface of fittings and wire our BlackEtch process offers a smooth black finish with superior corrosion resistance. To see this great finish for yourself we recommend ordering a FREE SAMPLE HERE.


THIS SYSTEM:
• Is suitable for use with timber posts
• Is great for both flat and stair sections
• Requires factory hydraulic swaging
• AWR can factory swage balustrade wires to your exact lengths. Order before 2pm for next business day pick up or dispatch.

KEY BENEFITS TO THIS SYSTEM:
• Wires are pre-manufactured to your exact lengths
• Extremely quick and simple installation
• BlackEtch process offers a unique, stylish, and durable finish
• BlackEtch process offers a smooth black finish with superior corrosion resistance

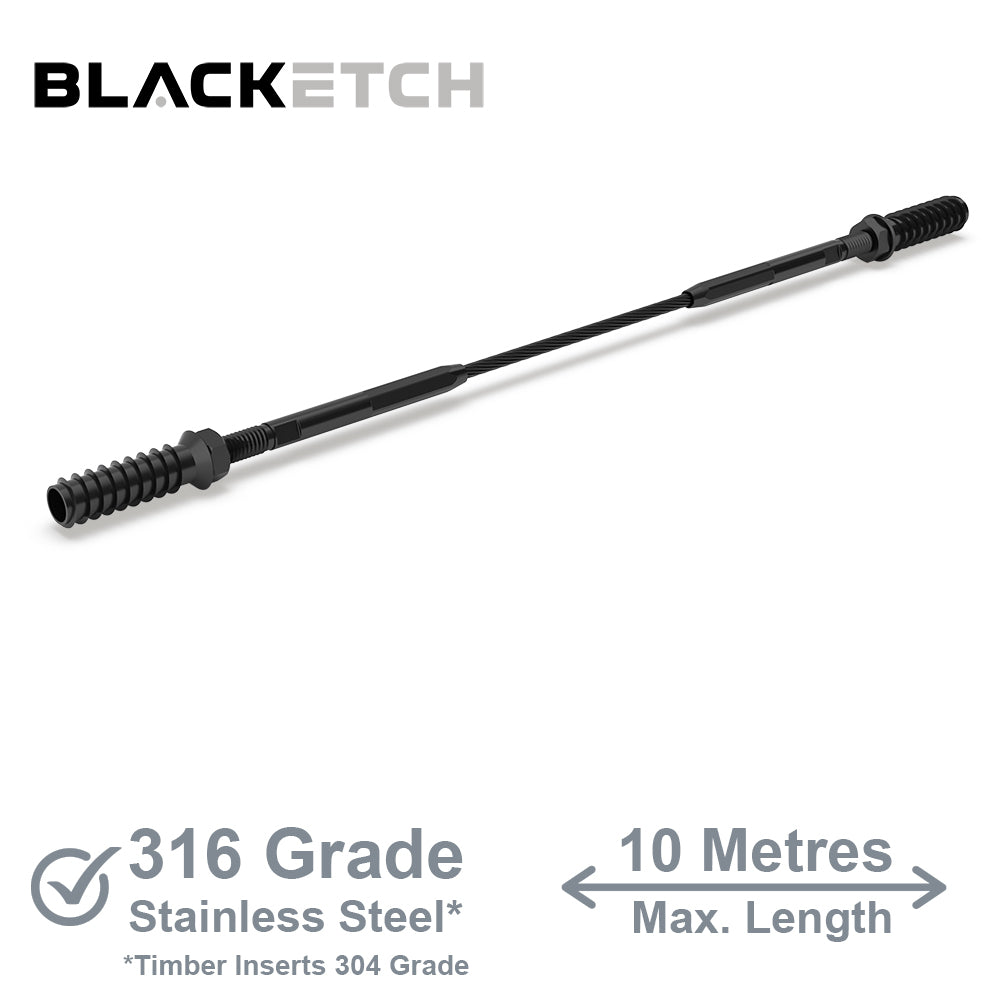

• All fittings made from high quality 316 grade stainless steel (Timber inserts 304 grade)
• This system is suitable for both flat and stair sections when used with swivel connectors on stairs.

COMPONENTS REQUIRED PER WIRE:
Individual items can be added to the cart from below:
1 x BS-3310-06L -M6 x 32 LHT Threaded Timber Insert 304 Grade
1 x BS-3310-06R - M6 x 32 RHT Threaded Timber Insert 304 Grade
1 x BS-7801-03635L - M6 x 35mm LHT Swage Stud to suit 3.2mm Wire 316 Grade
1 x BS-7801-03635R - M6 x 35mm RHT Swage Stud to suit 3.2mm Wire 316 Grade
2 x S03 - Cut and Factory Swage (Additional Cost)
BWRS119316-032 - 3.2mm 1 x 19 Wire Rope 316 Grade (Additonal cost Charged per Metre)

Add Ons for Stairs:
1 x BS-7813L-0615 - Swivel Connector M6 x 15mm LHT - 316 Grade Stainless Steel
1 x BS-7813R-0615 - Swivel Connector M6 x 15mm RHT - 316 Grade Stainless Steel


Wire Balustrade FAQ'S

Q: How long does it take for my wires to be manufactured?

A: If your wires are ordered by 2pm we will have them manufactured and ready for pick up or dispatch the following business day.

Q: How do my wires arrive to me?

A: All wires are bundled per section and labelled with your measurements for quick and easy installation on site.

Q: What size hole do I drill for the threaded Inserts?

A: 7.5mm hole to a depth of at least 35mm will be required.

Q: What size hole do I drill for my intermediate Posts?

A: An 7.5mm hole will allow the studs to be passed through your intermediate posts easily. you will need to take the nut off before feeding your wire through the intermediate posts.

Q: Do I need any specials tools to install this system?

A: Your wires will be made to length in our factory. To install your wires, you will only need common handyman tools including a power drill, drill bits, shifters etc. We also recommend purchasing an M6 Hex Drive Bit and a M6 C Spanner

Q: Can I use this system on stairs or angled sections?

A: You can use the Timber Insert System on stair sections, but we highly recommend adding swivel connectors on the stair sections. Swivel connectors allow the wire to be connected to the wire any stair angle.

Q: What size and type of wire should I use with this system?

A: As with all pre-made ready to install systems we recommend using 3.2mm 1 x 19 wire rope.

Q: What is the maximum length I can have run my wires?

The longest length run we would recommend for the Timber Insert System is 10 metres. Please note that some other systems may not be able to span this far.

Q: How many runs of wire do I need on my balustrade?

A: To comply with Australian NCC regulations for most wire balustrades you will need 80mm spacing between your wires. This is usually 11 runs of wire on a 1 metre high balustrade measuring 960mm to the underside of handrail. This applies to most decks over 1 metre from the ground and below 4 metres from the ground. There are additional restrictions that apply. We highly recommend reading our Wire Balustrade Regulations page for full details.

Q: What is the maximum spacing can I have between my posts?

A: To comply with Australian NCC regulations for most wire balustrades the maximum space you can have between posts will be 1500mm. We highly recommend reading our Wire Balustrade Regulations page for full details.

Q: Can I run my wire balustrade around corners?

A: We would strongly advise against bending your wire around corners and angled sections. This can fatigue the wire over time as well as damage your posts (especially timber). Wires should always be terminated at each corner and end post.

More Questions? No problem, just send us an email at sales@awrsolutions.com.au or give us a call on 1300 781 266 and we would be happy to help
