Bright Finish Rig Fork System with Saddles for 3.2mm Wire Rope - Suits Metal Posts

Skip to product information
1 of 1
In Stock
In Stock - Order by 2pm for next day dispatch or Pick Up

FOR PRICING AND BUYING OPTIONS:

Description Overview

THE RIG FORK KIT WITH SADDLES is another of our most versatile systems. It is suitable for use with timber posts or metal posts and is great for both straight sections and stair sections. Tension is created on the wire by rotation of the rigging screw body. Tightening the nuts against the body of the rigging screw locks the system in place.

THIS KIT:
• is suitable for use with timber posts and metal posts
• is great for both flat and stair sections
• Requires factory hydraulic swaging
• AWR can factory swage balustrade wires to your exact lengths. Order before 2pm for next business day pick up or dispatch.

KEY BENEFITS OF THIS KIT:
• Wires are pre-manufactured to your exact lengths
• Extremely quick and simple installation
• Uses ultra-bright and sleek 1 x 19 wire rope
• All fittings made from high quality 316 grade stainless steel
• This system is suitable for both flat and stair sections

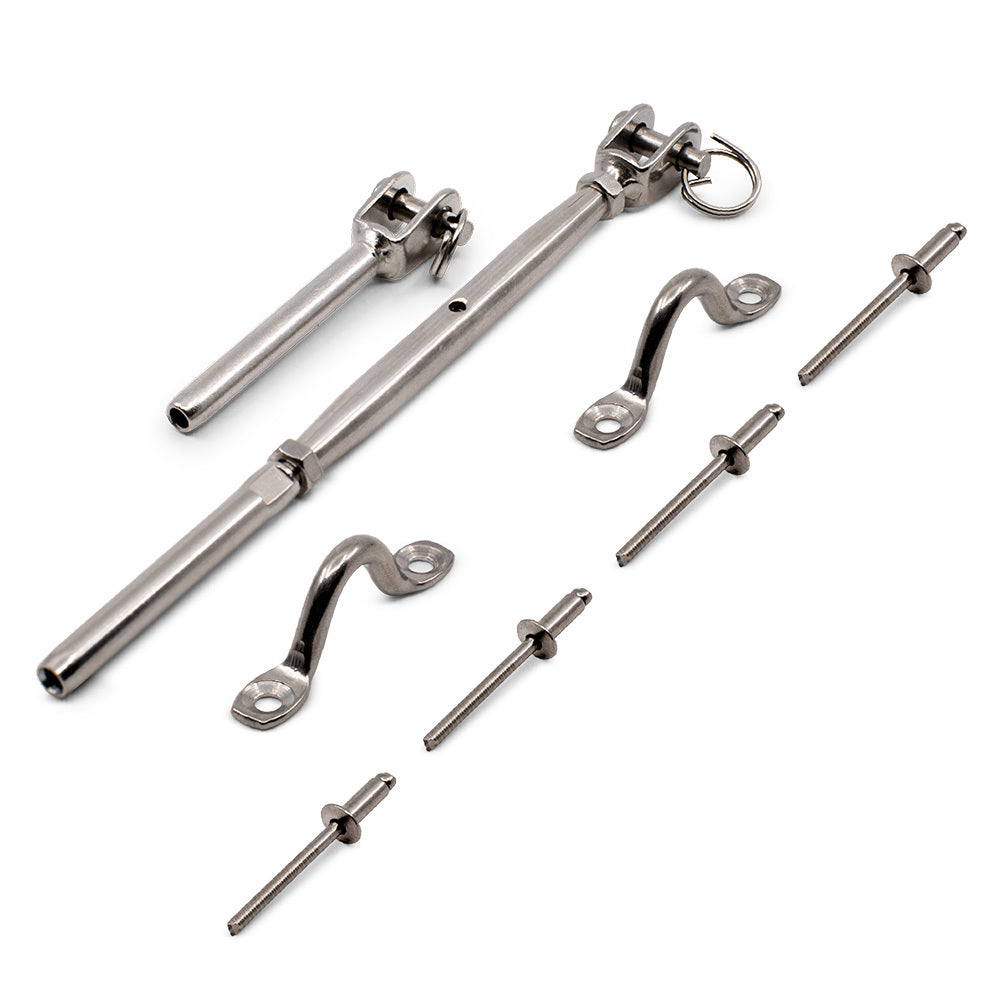

COMPONENTS REQUIRED PER WIRE:
Individual items can be added to the cart from below:
1 x SS-312T-532 - Rigging Screw Jaw - Swage 316grade M5 3.2m Wire
1 x SS-7803-03 - Fork Terminal - Swage 316grade 3.2mm Wire
1 x 2 x SS-322-05 - 5mm Saddle (Eye Strap) - 316 Grade
4 x STPP8114 - 8 x 1 1/4" Pan Head Self Tapper - 304 Grade (Timber posts only)
4 x PRSTST5-4 - 4 x 6.4mm Pop Rivets - 304 Grade (Metal Posts Only)

Order Wire Separately
WRS119316-032-MTR
 - 3.2mm 1 x 19 Wire Rope 316 Grade (Charged per Metre)
